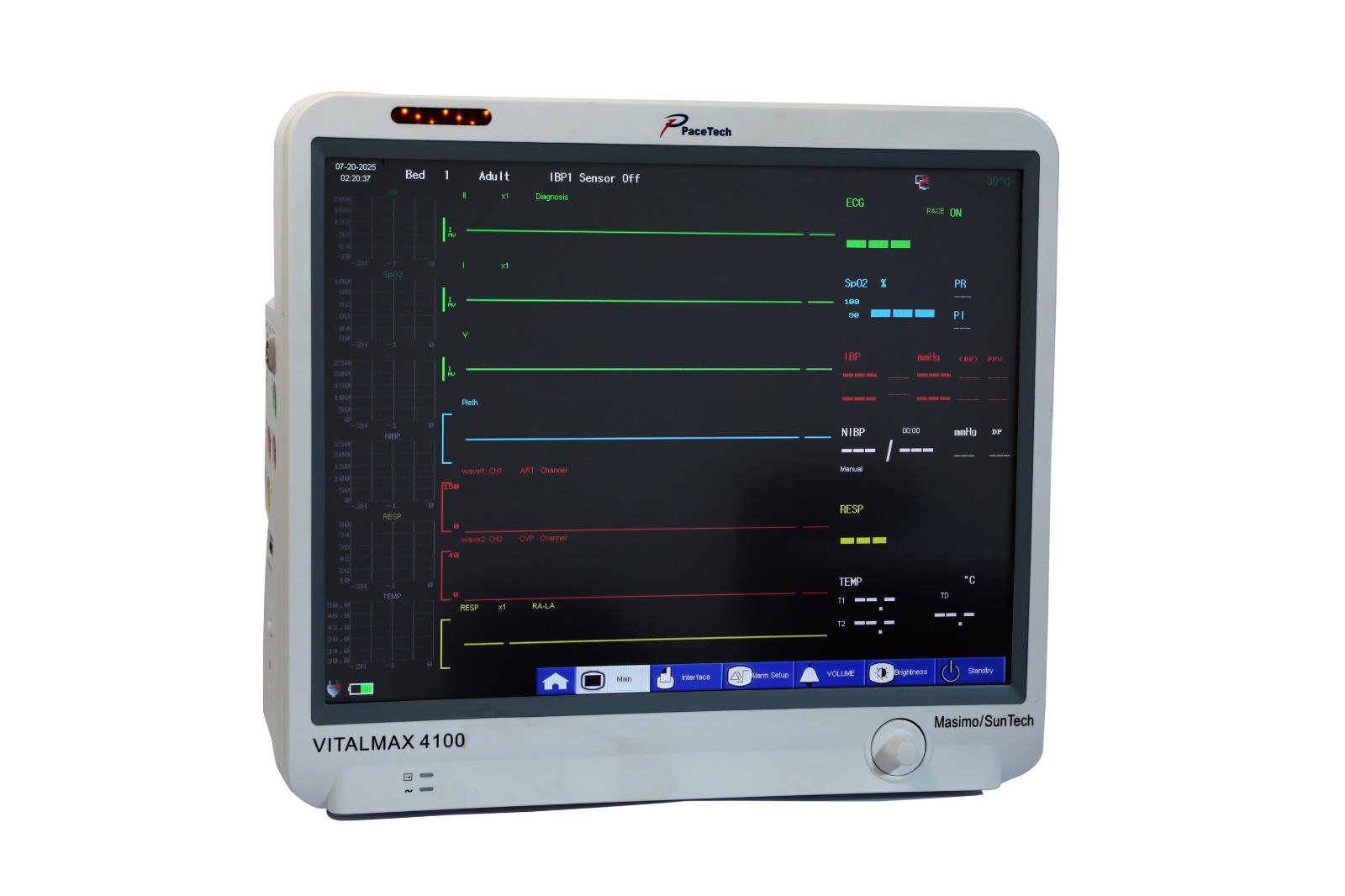

The VitalMax 4100 VET represents the pinnacle of veterinary patient monitoring, designed for hospitals, surgical suites, and critical care environments. Combining high-precision physiological monitoring with advanced modular capabilities, this monitor provides reliable, real-time insights into a wide range of veterinary patients, from small companion animals to larger species requiring intensive care.
Equipped with a 15-inch high-resolution TFT touchscreen, the VitalMax 4100 VET ensures that veterinarians have complete control and visibility over patient vital signs. Its modular architecture supports advanced options including EtCO₂, Dual Invasive Blood Pressure (IBP), Anesthetic Agent Monitoring, and 12-lead ECG, enabling a fully customizable monitoring experience tailored to your clinic’s needs.
Key Features of VitalMax 4100 VET
1. 15-Inch Touchscreen Display
The large 15-inch TFT color touchscreen provides exceptional clarity and allows multiple parameters to be displayed simultaneously. Its intuitive touchscreen interface enables veterinary staff to quickly navigate between screens, adjust settings, and access real-time waveform displays for ECG, SpO₂, respiration, and more. This highly responsive interface improves workflow and enhances rapid decision-making during critical procedures.
2. 12-Lead ECG Monitoring
The VitalMax 4100 VET supports 12-lead ECG, in addition to 3- or 5-lead options, enabling comprehensive cardiac assessment. Real-time ECG display, arrhythmia detection, and ST-segment analysis provide early warning for cardiac events, allowing veterinarians to act promptly. The system’s digital filtering technology ensures accurate signal quality even in high-motion patients.
3. Respiration Monitoring
Using impedance-based respiration measurement, the monitor continuously tracks respiratory rate and patterns. This function is crucial during anesthesia, intensive care, or recovery periods, helping detect hypoventilation, apnea, or irregular breathing at the earliest stage.
4. SpO₂ Monitoring
With advanced pulse oximetry, the VitalMax 4100 VET measures oxygen saturation levels accurately, even in low-perfusion situations or moving animals. Continuous SpO₂ monitoring ensures optimal oxygen delivery during surgical and critical care procedures.
5. Temperature Monitoring
The monitor provides precise temperature measurement via standard or core probes, ensuring accurate readings for both small and large animals. Temperature monitoring is critical for anesthesia management, surgical procedures, and post-operative care.
6. Non-Invasive and Invasive Blood Pressure (NIBP & IBP)
The VitalMax 4100 VET supports both oscillometric NIBP and Dual Invasive Blood Pressure (IBP) measurement. Dual IBP monitoring enables simultaneous tracking of two arterial lines, essential for complex surgeries or critically ill patients. Blood pressure readings are highly accurate, and alarm thresholds are customizable for different animal species.
7. EtCO₂ Monitoring (Optional)
Optional sidestream or mainstream EtCO₂ monitoring allows precise evaluation of ventilation and respiratory function. This is particularly beneficial during anesthesia or intensive care, enabling veterinarians to optimize ventilation and detect abnormalities early.
8. Anesthetic Agent Monitoring
The VitalMax 4100 VET supports anesthetic agent monitoring with 5-gas detection and automatic agent identification. This ensures safe and effective anesthesia management, providing real-time monitoring of inhaled gases for optimal patient safety.
9. Modular Design and Customizability
The monitor’s modular design allows clinics to configure the device according to their requirements, offering optional modules including:
- EtCO₂ only
- Dual IBP
- Cardiac Output
- Anesthetic Agent Monitoring
- Full 12-lead ECG
This flexibility allows veterinary practices to adapt the monitor for both general and specialized clinical needs, making it a future-proof investment.
10. Priority Alarms and Safety Features
VitalMax 4100 VET includes visual and audible alarms for all critical parameters. Alarms are customizable, enabling veterinary teams to set species-specific thresholds for heart rate, blood pressure, oxygen saturation, respiration, and temperature. Priority alarms ensure immediate notification for life-threatening changes in patient status.
11. Trend Analysis and Data Storage
The monitor stores long-term trend data for ECG, SpO₂, NIBP, IBP, temperature, and respiration. Clinicians can review patient trends over hours or days, supporting evidence-based decisions and accurate post-operative assessment.
12. Portable and Ergonomic Design
Despite its large touchscreen and advanced features, the VitalMax 4100 VET is designed to be compact and portable. Its ergonomic layout provides easy access to all connections, simplifying setup in operating rooms, intensive care units, or mobile veterinary environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Display | 15-inch TFT color touchscreen |
| ECG Leads | 3-lead, 5-lead, or 12-lead configuration |
| SpO₂ | Advanced digital pulse oximetry, low perfusion compatible |
| NIBP | Oscillometric, automatic/manual modes |
| IBP | Single/Dual channel optional |
| Temperature | 0–50°C, ±0.2°C, optional core probe |
| Respiration | Impedance-based, 0–150 breaths/min |
| EtCO₂ (Optional) | Sidestream or mainstream, 0–150 mmHg |
| Anesthetic Monitoring | 5-gas, auto agent ID |
| Cardiac Output | Optional module |
| Alarms | Visual and audible, customizable |
| Trend Data | Up to 72 hours storage |
| Connectivity | Optional WiFi or Ethernet for central monitoring |
| Power | AC 100–240V, rechargeable internal battery |
| Battery Life | Up to 4 hours |
| Dimensions | Approx. 400 x 280 x 120 mm |
| Weight | ~5.5 kg |
| Operating Conditions | 0–40°C, 15–95% humidity |
Advantages and Differentiators
- Large 15-inch Touchscreen: High-resolution display for easy viewing and navigation of multiple parameters.
- Comprehensive Cardiac Monitoring: Includes full 12-lead ECG for advanced cardiac assessment.
- Advanced Modular Options: Dual IBP, EtCO₂, anesthetic gas monitoring, and cardiac output modules.
- Veterinary-Specific Algorithms: All measurements, trends, and alarms are optimized for animal patients.
- Reliable and Accurate: Ensures high-quality readings even in low-perfusion or high-motion conditions.
- Trend and Data Analysis: Supports long-term monitoring, enhancing patient care and clinical decision-making.
- Customizable Alarms: Immediate notification for critical changes in patient vitals.
- Ergonomic and Portable: Lightweight design for use in multiple locations and mobile care environments.
Clinical Applications
The VitalMax 4100 VET is suitable for:
- Surgical Monitoring: Ideal for anesthesia, perioperative, and post-operative monitoring.
- Intensive Care Units: Continuous monitoring for critically ill patients.
- General Veterinary Clinics: Routine and advanced monitoring for a variety of species.
- Emergency and Mobile Veterinary Services: Portable design enables field or emergency use.
- Research and Clinical Trials: High accuracy and trend data support veterinary research applications.
Why Choose VitalMax 4100 VET?
- Veterinary-Focused Monitoring: All parameters and alarms are tailored to animal physiology.
- Advanced Modular Flexibility: Customize with EtCO₂, Dual IBP, anesthetic monitoring, or 12-lead ECG.
- Large, User-Friendly Touchscreen: Simplifies monitoring and enhances workflow.
- Reliable Trend Recording: Supports post-operative assessment and long-term patient care.
- Portable and Robust: Compact design with battery backup for continuous operation.
Summary
The VitalMax 4100 VET is a premium veterinary patient monitor that delivers comprehensive, real-time monitoring with exceptional accuracy, versatility, and ergonomic design. Its 15-inch touchscreen, combined with optional EtCO₂, Dual IBP, anesthetic monitoring, and 12-lead ECG, makes it ideal for modern veterinary hospitals, surgical suites, and critical care settings.
Whether managing routine procedures, advanced surgeries, or emergency care, the VitalMax 4100 VET ensures veterinarians have all the critical information they need to make informed, timely decisions, enhancing patient safety and care outcomes.
Warranty: Typically includes a 2–3 year limited warranty, ensuring peace of mind and long-term reliability.
